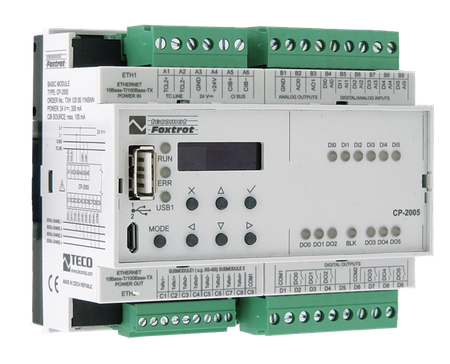

CP-2005 FOXTROT

TXN 120 05.11NSNN

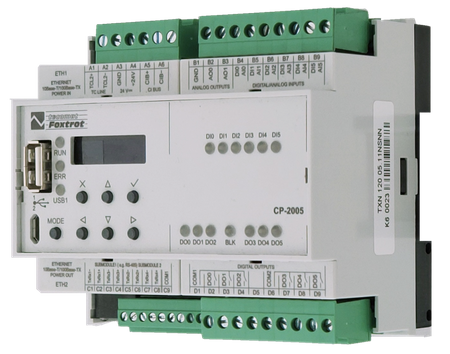

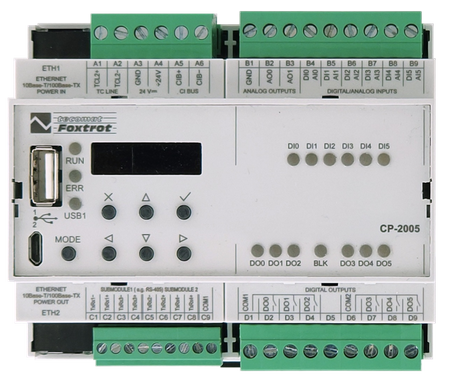

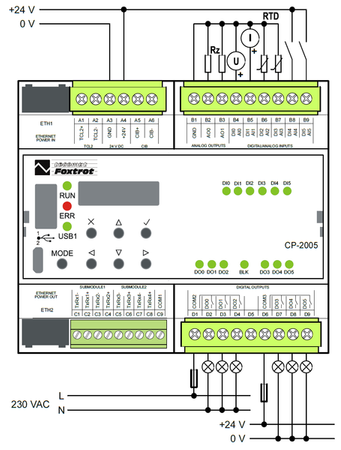

The basic TECOMAT FOXTROT CP-2005 module includes a central unit with two independent Ethernet interfaces, one USB device interface for connecting a master system and one USB host interface for connecting an external memory (USB Flash memory). The peripheral part of the basic module contains 6 universal inputs (binary/analog), 6 relay outputs and 2 analog 10 V outputs. The basic module has an integrated 4 x 20 character display and 7 buttons. In addition to system configuration and diagnostics, the display and buttons can also be used in the user program.

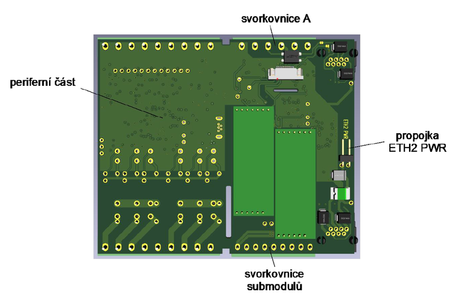

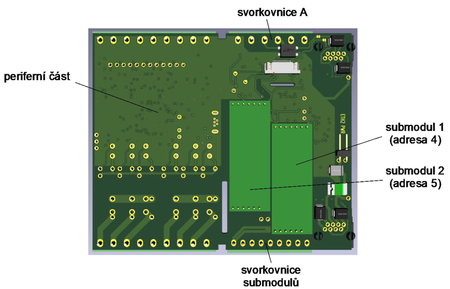

The basic module also includes a slot for mounting an additional micro SD memory card (not available with WLAN1). Some variants of the basic module are equipped with an internal WLAN1 interface for WiFi networks or LTE1 for GSM networks. The TCL2 system bus can be connected to the base module for communication with the peripheral modules of the FOXTROT family and the CIB Common Installation Bus® (trademark of Teco a.s., hereinafter referred to as CIB) for communication with the modules of the CFox family. Optionally, the basic module can be equipped with two submodules with serial channels.

TECOMAT FOXTROT 2 programmable controllers represent a new generation of control systems based on the previous TECOMAT FOXTROT series. They are small compact machines with the possibility of modular expansion. They combine the advantages of compact machines in terms of size and modular systems in terms of scalability and variability. The individual modules of the system are enclosed in protective plastic housings, which are mounted on a ČSN EN 50022 U-rail. Thanks to this, they can be manipulated without the risk of damaging the sensitive CMOS components. The entire system is designed in accordance with the ČSN EN 61131 standard.
