CP-2091 PLC FOXTROT2 TXN 120 91.11NDNN
- Databox: 128 kB
- Processor: 1x core ARMv7 792 MHz
- Display: OLED
- 2xETH100/10
- 1x RS-485
- 1xCIB
- CH1-4
- 8xAI/DI
- 2xAI/DI/AO
- 1x DI(230VAC)
- 2xAO/DO (PWM)
- 3xDO (PWM)
- 6xRO, 24VDC/230VAC
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
CP-2091 FOXTROT
TXN 120 91.11NDNN
The basic modules CP-2091 are from the range of basic modules (ZM) of modular programmable controllers of the Foxtrot 2 series.
Basic modules CP-2091 includes:
- 8x multipurpose inputs, each of which can be used either as an analog input or as a binary potential-free contact,
- 2x multipurpose binary outputs (24V DC) / analog outputs (0-10V)
- one binary input 230 V AC,
- 3x binary outputs 24 V 0.5 A with optional PWM function
- 3x separate relay outputs 230 V AC / 5A.
- 3x separate relay outputs 230 V AC / 16A
The following interfaces are also available:
- 2x Ethernet
- up to 4x serial channels
- 1x CIB master installation bus for connecting external peripherals
- 2x TCL2 system bus master designed for connection of expansion I / O modules, which increase the total number of I / Os.

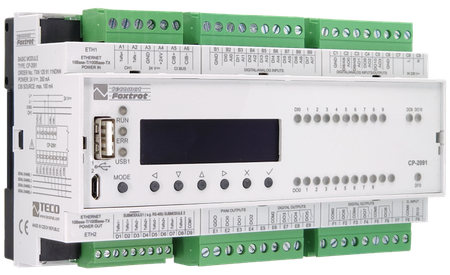

The basic module CP-2091 contains a basic display LCD display of 4 x 20 characters and 6 user buttons.
